Product details:

Due to its low carbon content and stabilized heat treatment, w.n. 2.4856 alloy will not be sensitized even after 50 hours at 650-900℃. The supply state is soft annealed, its application range includes wet corrosion environment, and it has obtained TuV certification for pressure vessels with temperature of -196 ~ 450℃.

Mechanical properties can be improved by aging hardening.

W.N r. 2.4856 features

1. All kinds of corrosion media in oxidation and reduction environment have excellent corrosion resistance

2. Excellent resistance to spot corrosion and crevice corrosion without stress corrosion cracking caused by chloride

3. Excellent corrosion resistance to inorganic acids, such as nitric acid, phosphoric acid, sulfuric acid, hydrochloric acid, mixed acid of sulfuric acid and hydrochloric acid, etc

4. Excellent corrosion resistance to mixed solution of various inorganic acids

5. When the temperature reaches 40℃, it can show good corrosion resistance in various concentrations of hydrochloric acid solution

6. Good machinability and weldability, no cracking sensitivity after welding

7, with the wall temperature of -196 ~ 450℃ pressure vessel manufacturing certification

8. Certified by the corrosion engineers association of America (mr-01-75) to the highest standard grade VII for use in acidic gas environments

Application field

The low carbon alloy after softening and annealing is widely used in the chemical process industry, which has good corrosion resistance and high strength and can be used as the thinner structural parts. It can be used in contact with sea water and under high mechanical stress.

Typical application fields:

Components of organic chemical processes containing chloride, especially where acid chloride catalysts are used

Digesters and bleaching pools used in the pulp and paper industry

● absorption tower, reheater, flue gas inlet baffle, fan (wet), stirrer, deflector and flue gas flue gas desulfurization system

● for manufacturing equipment and components used in acidic gas environment

● acetic acid and acetic anhydride reaction generator

● sulphuric acid condenser

Close to the brand

GH3625, GH625 (China), NC 22 DNb (France), w.nr.2.4856, NiCr22Mo9Nb(Germany), NA 21 (UK) Inconel625, UNS NO6625(us) NiCr22Mo9Nb(ISO)

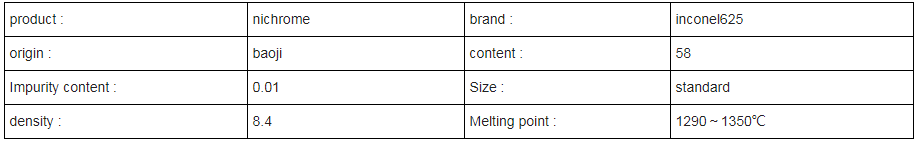

Physical properties

W.N r. 2.4856 density

Rho = 8.4 g/cm3 density

W.nr.2.4856 melting temperature range

The melting temperature range is 1290 ~ 1350℃

W.N r. 2.4856 welding

Suitable for any traditional welding process, such as tungsten arc welding, plasma arc welding, manual sub-arc welding, metal arc welding, melt arc welding.

The material to be welded shall be in solid solution state to remove oxide skin, grease and marks. The welding operation shall be performed at the specified low heat input with interlaminar temperature not exceeding 150℃. Heat treatment is no longer required before and after welding.
